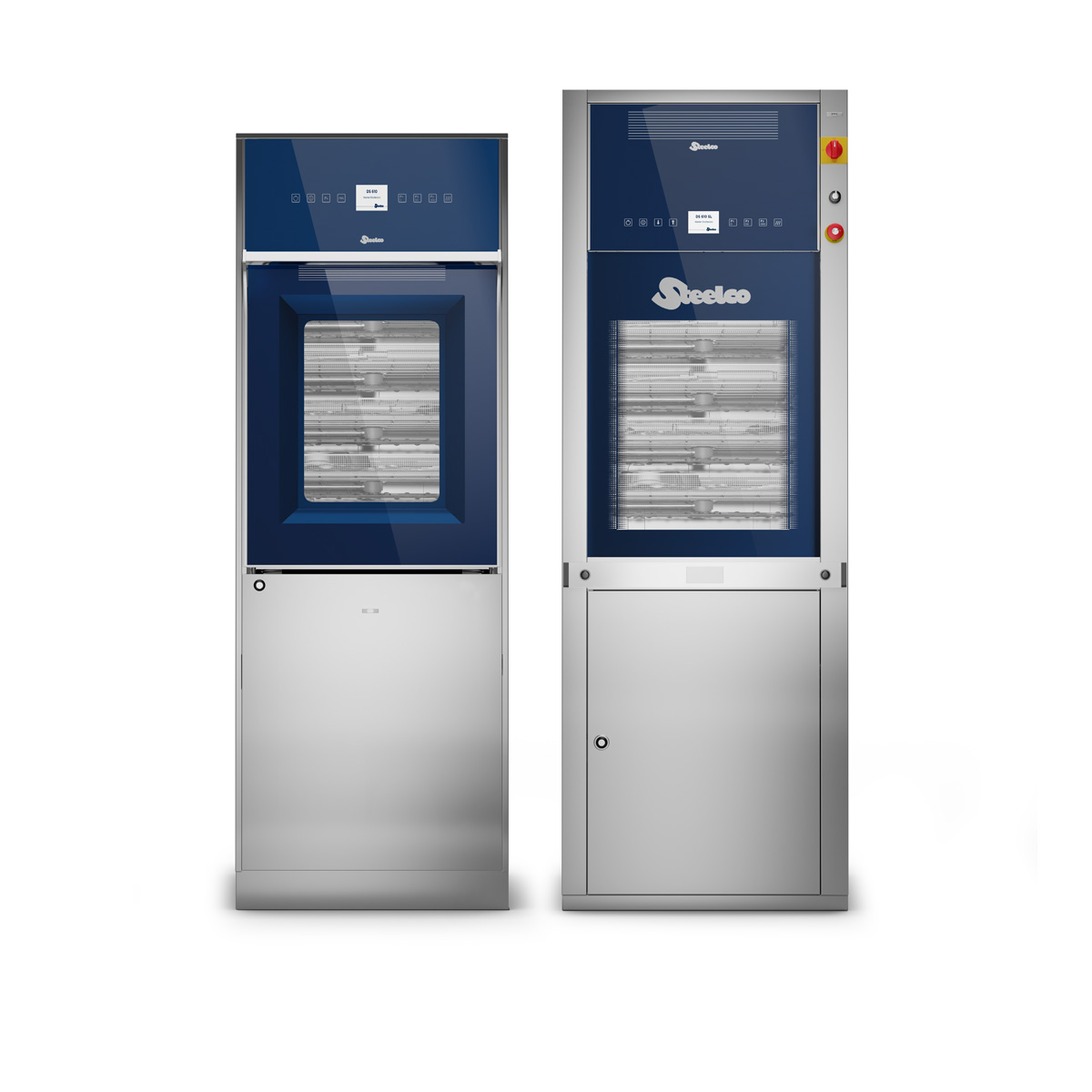

Steelco Medical Washer Disinfector, Model DS 610

The DS 610 Series of high capacity models of washer-disinfector offers a complete washing, thermal disinfection treatment, and HEPA 14 forced hot air drying of all types of surgical instruments, with a processing capacity for up to 10 DIN trays. It is equipped with an efficient hot air drying system that ensures perfect drying of all instruments and tubes after disinfection thanks to the accurate distribution of air on all chamber zones and wash-cart levels. The devices are available as a single door or double door for pass-through application versions.

Request a Quote

The DS 610 Series is available in standard or “Fast Cycle” version, allowing a complete cycle in 35 minutes with a substantial improvement on working efficiency and a consequent reduction of energy consumption. The devices are equipped with a high visibility full glass door and a user-friendly soft-touch control system on a glass panel with an LCD color display to visualize cycle status. The loading and unloading washing carts operations can be done at an ergonomic height by using manual or automatic single loading/unloading transfer trolleys.



Flexible Solutions

According to your needs, capable of processing up to 10 DIN trays.

Excellent Washing Results

Double washing pumps to ensure a high water flow rate combined with an effective spray pressure.

Effective Thermal Disinfection

Washing and disinfection temperatures are fully adjustable up to 93°C. Temperature is monitored by two independent sensors.

Ergonomics

The convenient design of the door level height allows the user a frictionless loading/unloading job.

Drying Efficacy

Built-In HEPA 14 filtered forced air drying system providing even and fast drying of surgical instruments. Adjustable time and temperature settings, optimizing cycle duration and energy consumption.

Traceabilty

RS 232 port for printer connection to monitor and validate washing phases. USB port for historical cycle data download and software upgrades.
