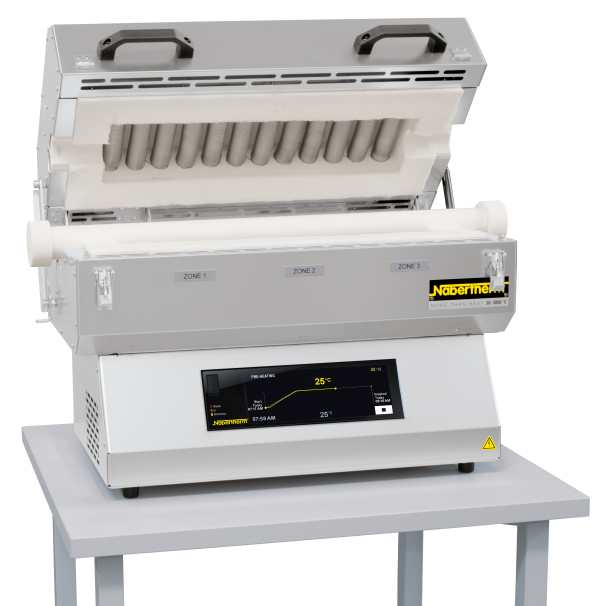

Split-Type Tube Furnaces

Split-Type Tube Furnaces for Horizontal or Vertical Operation up to 1300 °C

Request a Quote

These tube furnaces can be used for horizontal (RSH) or vertical (RSV) operation. The split-type design makes it easy to change the working tube. It allows for a comfortable exchange of various working tubes (e.g. working tubes made of different materials).

Using a wide range of accessories, these professional tube furnaces can be optimally tailored for your process. By adding different gas supply packages, you can work in a protective gas atmosphere, with gases or in a vacuum. In addition to the convenient standard controllers, modern PLC controls can also be used to control the process.

Standard Equipment

  • Tmax 1100 °C or 1300 °C
  • Single-zoned design
  • Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
  • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
  • RSV models with frame for vertical operation
  • Split-type design for simple insertion of the working tube (opening temperature < 180 °C)
  • Ceramic working tube C 530 including two fiber plugs for operation under air
  • Thermocouple type N (1100 °C) or type S (1300 °C)
  • Solid state relays provide for lownoise operation
  • Heating elements on support tubes provide for free radiation
  • RSH: switchgear and control unit integrated in furnace housing
  • RSH: controller with touch operation B510 (5 programs with each 4 segments)
  • RSV: switchgear and control unit separate from furnace in own wall or standing cabinet
  • RSV: controller with touch operation B500 (5 programs with each 4 segments)
  • Defined application within the constraints of the operating instructions
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
