Steelco Low Temperature Plasma Sterilizer, Model PL 70

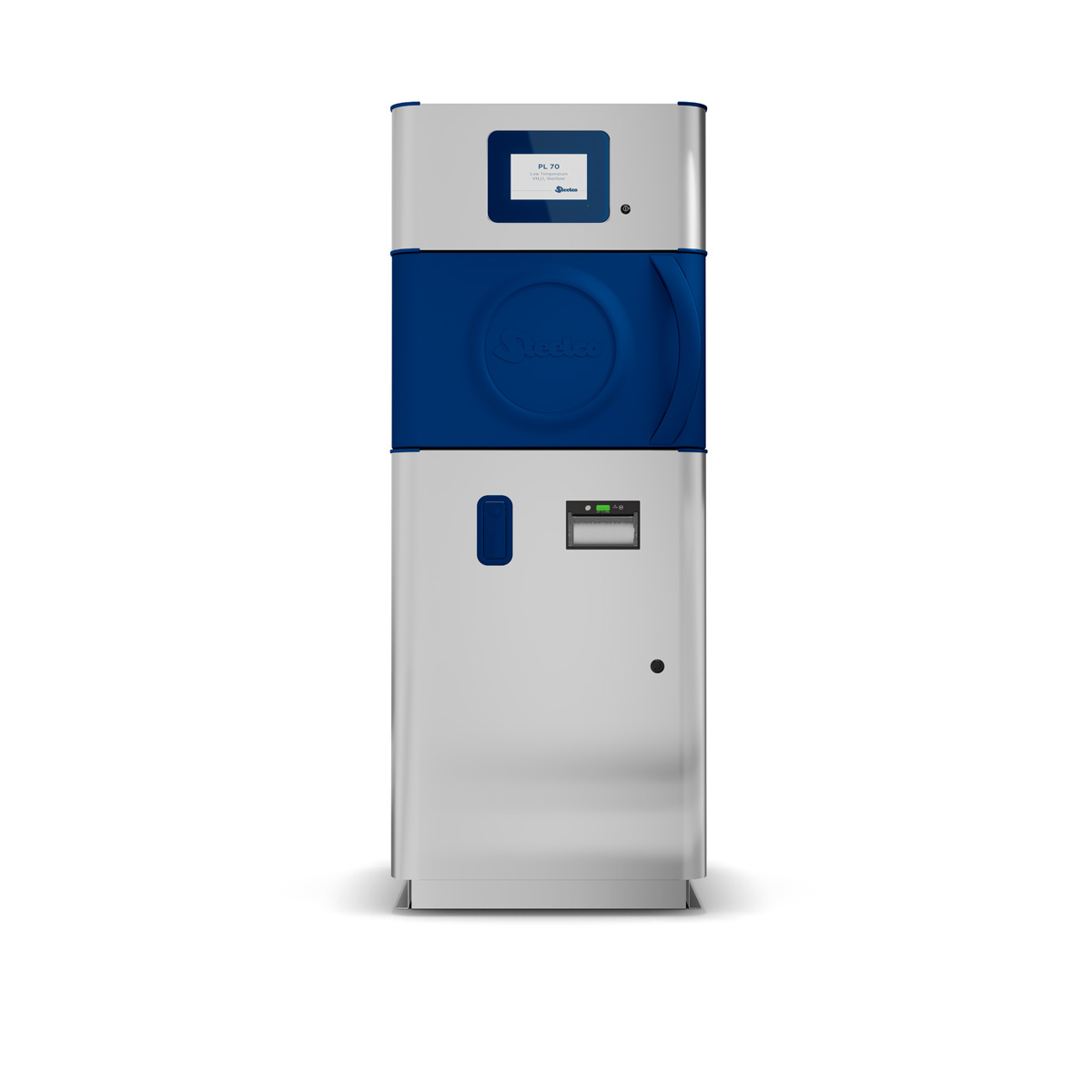

PL 70 is a low-temperature sterilization system with a chamber capacity of up to 84 litres / 2.88 cu ft. The device is designed for terminal sterilization of moist and heat-sensitive medical devices employing vaporized hydrogen peroxide. It is suitable for surgical instruments in metal, metal alloys, light non-metallic alloys, micro-surgery, instruments with lumen with a maximum length of up to 2200 mm / 86.62″ and a minimum diameter of up to 0,5 mm.

Request a Quote

Vaporized hydrogen peroxide sterilization with SteelcoPro PL sterilizing agent is safe, fast, and environmentally friendly – operating with low pressure and low temperature for protecting instruments and reducing energy consumption. Available as single door or double door versions, it is equipped with a manual hinged door and with flexible load capacity configurations. PL 70 is controlled by a PLC digital microprocessor with a 7″ color touch screen HMI. Loading and unloading operations can be done at an ergonomic height. The loading height is ergonomically placed at 1020 mm / 40.17″.



Small Footprint

Similar features, benefits, and performances of the larger capacity PL models with the most compact footprint on the market in relation to the load capacity.

Excellent Penetration

Excellent penetration into hollow instruments: Lumens: Ø ≥ 0.5 length ≤ 2200 mm, with single, double, and triple channels.

Immediately Available

The models of the PL series are all Plug & Play, ready to be started quickly in any location.

Shelves Position Configurable

Loading flexibility thanks to chamber modularity with semi-extractable shelves and a perfect range of accessories, including baskets and inserts.

Enviromental Sustanaibility

Hydrogen Peroxide emissions are up to 70 times lower than the most restrictive guidelines thanks to the triple safety system for reducing H2O2 release: plasma generator, catalyzed converter, and an active carbon filter.

RFID or Barcode Recognition

All the devices have the option of the Barcode or RFID scanner for easy and quick recognition of the operator, the load, and starting cycles.
